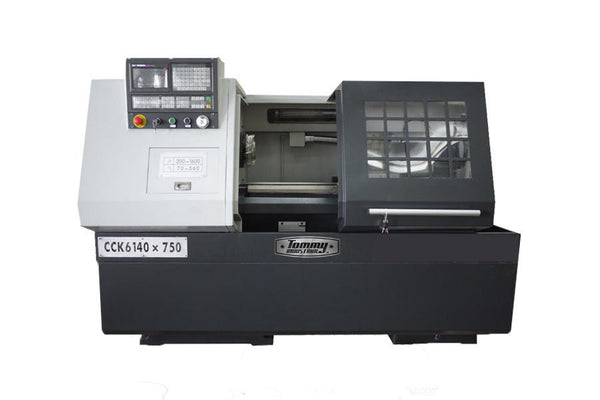

59" X 16" OVER BED  Flat Bed CNC Lathe

59" X 16" OVER BED Flat Bed CNC Lathe

Sku: TICCK6140

With the Tommy Industrial Flat Bed CNC Lathe Series you get affordable reliability and features not usually found on basic Flat Bed CNC Lathes. That's why these CNC Lathes are a favorite for manufactures, fabricators, maintenance shops and machine shops.  Features Include:

 –Featured with flat bed, wide hard guide way and fully enclosed safe guard

–The spindle box adopted 2-steps gear change speed and frequency conversion

–There are adjusting row tools for choice

–The machine uses the modular design

–4 positions electric tool post

–Multiple CNC control system

Three-jaw chuck

Center and center sleeve

Wrenches

Oil gun

Operation manual
Model TICCK6140 Specifications
Item Imperial Metric
Working Area Workpiece length (max.) 29 in/ 39 in/ 59 in 750 mm/ 1000 mm/ 1500 mm
Turning length (max.) 24 in/ 33 in/ 53 in 600 mm/ 850 mm/ 1350 mm
Turning diameter over bed 16 in 400 mm
Turning diameter over support 8 in 215 mm
Travels Travel X-axis 9 in 240 mm
Travel Z-axis 24 in/ 33 in/ 53 in 600 mm/ 850 mm/ 1350 mm
Headstock Spindle speed L: 3-22 in H: 8-63 in L: 70-560 mm H: 200-1600 mm
Spindle mount C6 C6
Spindle bore 2 in 52 mm
Rapid Feed Rapid feed X-axis 236 in/min 6000 mm/min
Rapid feed Z-axis 394 in/min 10000 mm/min
Tool head Number of tool stations 4 positions 4 positions
Tailstock Tailstock taper MT 4 MT 4
Tailstock quill diameter 2.5 in 65 mm
Tailstock quill stroke 5 in 120 mm
Drive Capacity Motor rating main drive 5 Hp 4 kW
Measures and weights Overall dimensions (length x width x height) 85x49x60 in 2150x1250x1520 mm
94x49x60 in 2400x1250x1520 mm
114x49x60 in 2900x1250x1530 mm
Weight 3307 lbs/ 3527 lbs/ 3858 lbs 1500 kg/ 1600 kg/ 1750 kg
